MacBook Pro 5,5 Modding #629638 05/05/15 12:26 PM
Joined: Nov 2007
Posts: 1,816
T
TCPMeta Offline OP
MacModder
OP Offline
MacModder
T
Joined: Nov 2007
Posts: 1,816
My MacBook Pro 5,5 has finally gotten badly hurt the other day. Water got spilled on the keyboard. Not so much a huge loss since the battery doesn't hold a charge, half of the keyboard was dead and you have to play with the charger to work right. So I am going to turn it into a all-in-one desktop. I would love to toss it into the iMac G5 case I have sitting in the corner but the LCD isn't big enough but I do have some acrylic sheets that I kept from dismantling LCD screens.

So far I found the pads to make the motherboard turn on so I just need to wire up a Mon-SPST switch. I took apart the dead battery to find the pinout so I can power devices from the charger or maybe even build a new battery from scratch and make the thing portable or use it for a UPS. Reuse the keyboard backlighting to light up the case. Add a fan to suck in cool air to help out the main blower fan. I'm too scared to take apart the LCD since I would need a heat gun to remove the LCD panel glass to get to the LCD panel. However I found a old touch screen diffuser that fits the LCD so all I would need is a controller for it that only costs about 30 bucks. Basiclly in all the system will be sandwitched between two acrylic panels with some mesh or wood in between.


To live is to let die
Re: MacBook Pro 5,5 Modding [Re: TCPMeta] #629645 05/05/15 03:29 PM
Joined: Apr 2002
Posts: 15,077
Reboot Offline
Muhahahaha
Offline
Muhahahaha
Joined: Apr 2002
Posts: 15,077
Wow, you are industrious, quite the project. cool

You also must have a lot of time on your hands. laugh

Re: MacBook Pro 5,5 Modding [Re: TCPMeta] #629653 05/06/15 07:39 PM
Joined: Nov 2007
Posts: 1,816
T
TCPMeta Offline OP
MacModder
OP Offline
MacModder
T
Joined: Nov 2007
Posts: 1,816
I'm on a week long vacation.

I went ahead and took the LCD apart. Tomorrow i'll start slapping the case together. Hoprfully I can use some window cleaner and a razor blade to remove the reflection crap off one of the sheets of acrylic with out scratching it up.


To live is to let die
Re: MacBook Pro 5,5 Modding [Re: TCPMeta] #629655 05/06/15 11:11 PM
Joined: Apr 2002
Posts: 12,486
NucleusG4 Offline
Master•Blaster
Offline
Master•Blaster
Joined: Apr 2002
Posts: 12,486
PIcs!

Re: MacBook Pro 5,5 Modding [Re: TCPMeta] #629657 05/07/15 02:43 AM
Joined: Nov 2007
Posts: 1,816
T
TCPMeta Offline OP
MacModder
OP Offline
MacModder
T
Joined: Nov 2007
Posts: 1,816
I'll snap some in the morning.


To live is to let die
Re: MacBook Pro 5,5 Modding [Re: TCPMeta] #629667 05/07/15 04:04 PM
Joined: Nov 2007
Posts: 1,816
T
TCPMeta Offline OP
MacModder
OP Offline
MacModder
T
Joined: Nov 2007
Posts: 1,816
Alright, here are some pics. Nothing major but progress.

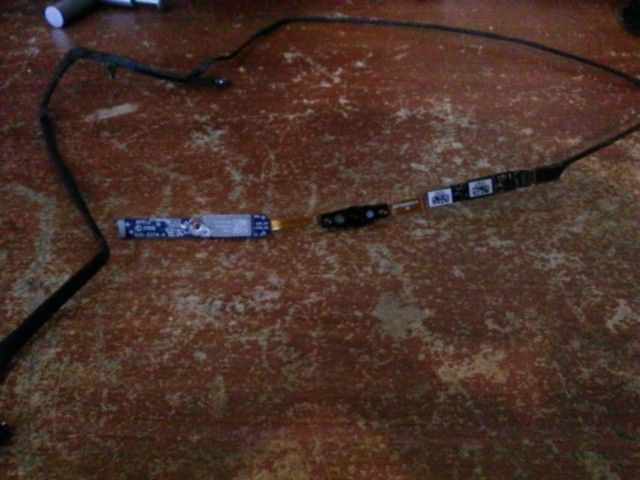

Camera with wire harness. The harness also connects to the WiFi/bluetooth module.


Motherboard to the MacBook.


LCD panel

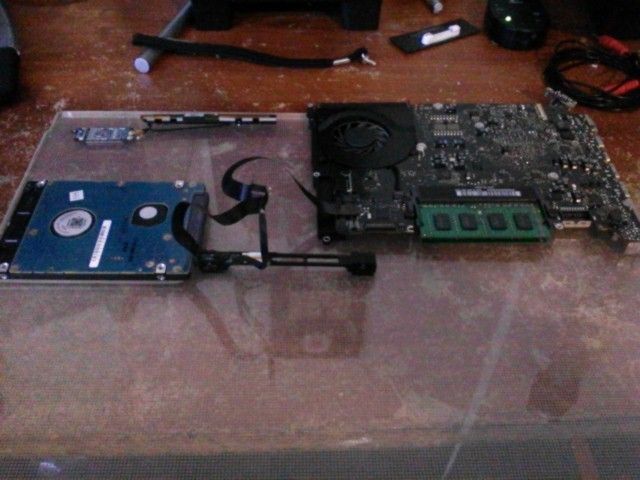

Mock hardware layout. No need for a optical drive. Might hook up a second hard drive for more storage.

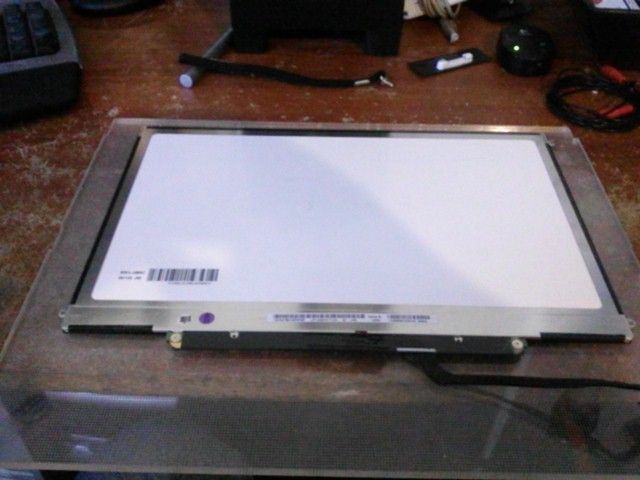

Mock LCD layout.


I was going to more on it yesterday but my brother wanted me to help him go car shopping. Waiting on the misses to get home so I can go to the store and buy a few items to start the build.


To live is to let die
Re: MacBook Pro 5,5 Modding [Re: TCPMeta] #629668 05/07/15 07:05 PM
Joined: Apr 2002
Posts: 12,486
NucleusG4 Offline
Master•Blaster
Offline
Master•Blaster
Joined: Apr 2002
Posts: 12,486
Looks like some fun! Thanks.

Re: MacBook Pro 5,5 Modding [Re: TCPMeta] #629670 05/07/15 09:41 PM
Joined: Nov 2007
Posts: 1,816
T
TCPMeta Offline OP
MacModder
OP Offline
MacModder
T
Joined: Nov 2007
Posts: 1,816
Ended up wet sanding the acrylic to get the stuff off. Came out well with 1000 and 1200 grit paper. I drilled and tapped the LCD mounts. Comes in handy to keep M3 machine screws around.



To live is to let die
Re: MacBook Pro 5,5 Modding [Re: TCPMeta] #629671 05/07/15 10:25 PM
Joined: Nov 2007
Posts: 1,816
T
TCPMeta Offline OP
MacModder
OP Offline
MacModder
T
Joined: Nov 2007
Posts: 1,816
Test run


To live is to let die
Re: MacBook Pro 5,5 Modding [Re: TCPMeta] #629674 05/08/15 12:52 AM
Joined: Apr 2002
Posts: 15,077
Reboot Offline
Muhahahaha
Offline
Muhahahaha
Joined: Apr 2002
Posts: 15,077
Nice, all it needs a boot device. cool
